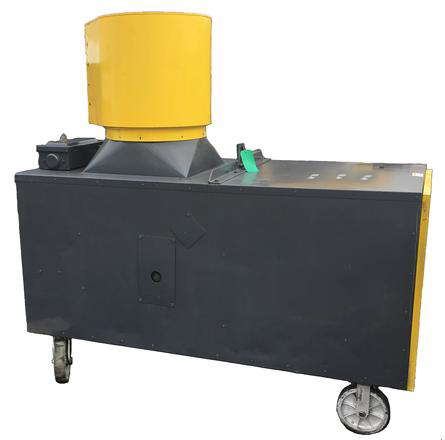

THP-750

thp-750Direct-Fired THP-750

Direct-fired make-up air heaters work well in most types of construction applications, helping to control moisture and air contaminants. These heaters operate similar to a permanent air handler, providing evenly distributed, warm, dry air. Installed either inside or outside, THP-Series heaters draw 100% fresh air through the unit’s intake and discharge tempered air controlled by a remote thermostat.

  • Electronic modulating burner controls
  • Remote space thermostats
  • Centrifugal blower
  • Available on wheels for portability

THP-750 Specifications

CFM 4,000
POWER SUPPLY 230/1/60/15*
WEIGHT (LB) 757
DIMENSIONS (IN) 68x33x65
BASE Casters
BTU/HR MAXIMUM 43,200 – 750,000
NATURAL GAS 1″ NPT



View Line Drawing Here
