Reliable performance and operator comfortP35A Wet Screed

Reliable performance and operator comfort.

When finishing concrete slabs, Wacker Neuson's wet screed can fit the demands of every job site with a variety of blade lengths, plus each unit is designed to fit the demands of every operator. It's unique twin handle system is fully height and angle adjustable offering maximum operator comfort. In addition, two isolators and specialized lower handle mount design reduce vibration to the operator. The squeeze grip handle is also foldable for easy transport and storage.

  • Adjustable eccentric weights can be adjusted to seven different positions allowing the unit's force to be appropriately matched to the application.
  • Lightweight unit features lifting handle for easy transport.
  • High production unit for quick and accurate strike-off of concrete slabs with or without the support of grade stakes and forms.
  • Fully enclosed exciter for operator production and low maintenance.

Technical specifications

Weight Operating 34.2 lb
Engine / Motor  Air-cooled single-cylinder four-cycle gasoline engine
Engine / Motor manufacturer  Honda GX35
Displacement  2.2 in³
Engine performance  1.0 (1.3) kW (hp)
at rpm  7,000 rpm
Tank capacity  0.7 US qt
Fuel consumption  0.2 US gal/h
Length machine 36.7 in
Width machine 36.7 in


6', 12', and 16' Screed Bars Available:

  SB 6 Foot SB 12 Foot SB 16 Foot
Weight 11.9 lbs. 25.1 lbs. 33.5 lbs.
Length 70.9 inches 145.7 inches 192.9 inches
Width 6.5 inches 6.5 inches 6.5 inches



Multiquip Power Trowels

J36KDFJ36KDF

4-Blade,36" Kohler CH395TF,9 HP, Min 60-115 Max RPM blade speed.

Multiquip is introducing a new line of walk behind trowels. The J36KDF features the option of running on gasoline or LPG. This cleaner burning Gasoline/ LPG Kohler engine can offer extened run times as well as an overall cost savings to the end user.

  • Durable Kohler CH 395TF engine provides efficient and reliable performance contractors demand
  • 3-year engine warranty.
  • Fuel control switch converts the engine from gaslone to LPG
  • Cleaner emissions
  • Fuel cost savings due to lower price of LPG compared to gasoline
  • Gearbox features top quality components and large oil capicity for years of trouble free performance
  • Spider and thrust collar design simplifies routine maintenance
  • Center mounted lifting bail for ease of movement on the jobsite
  • LPG fuel tank (Cap.11 LB.) comes as standard equipment

B46KDFB46KDF

4-blade, 46", Kohler, 14 HP, CH 440TF, Min 60-130 Max RPM blade speed.

Multiquip is introducing a new line of walk behind trowels. The B46KDF features the option of running on gasoline or LPG. This cleaner burning Gasoline/ LPG Kohler engine can offer extended run times as well as an overall cost savings to the end user.

  • Durable Kohler CH 440TF engine provides efficient and reliable performance contractors demand
  • 3-year engine warranty.
  • Fuel control switch converts the engine from gaslne to LPG
  • Cleaner emissions
  • Fuel cost savings due to lower price of LPG compared to gasoline
  • Gearbox features top quality components and large oil capicity for years of trouble free performance
  • Spider and thrust collar design simplifies routine maintenance
  • Center mounted lifting bail for ease of movement on the jobsite
  • LPG fuel tank (Cap.11 LB.) comes as standard equipment

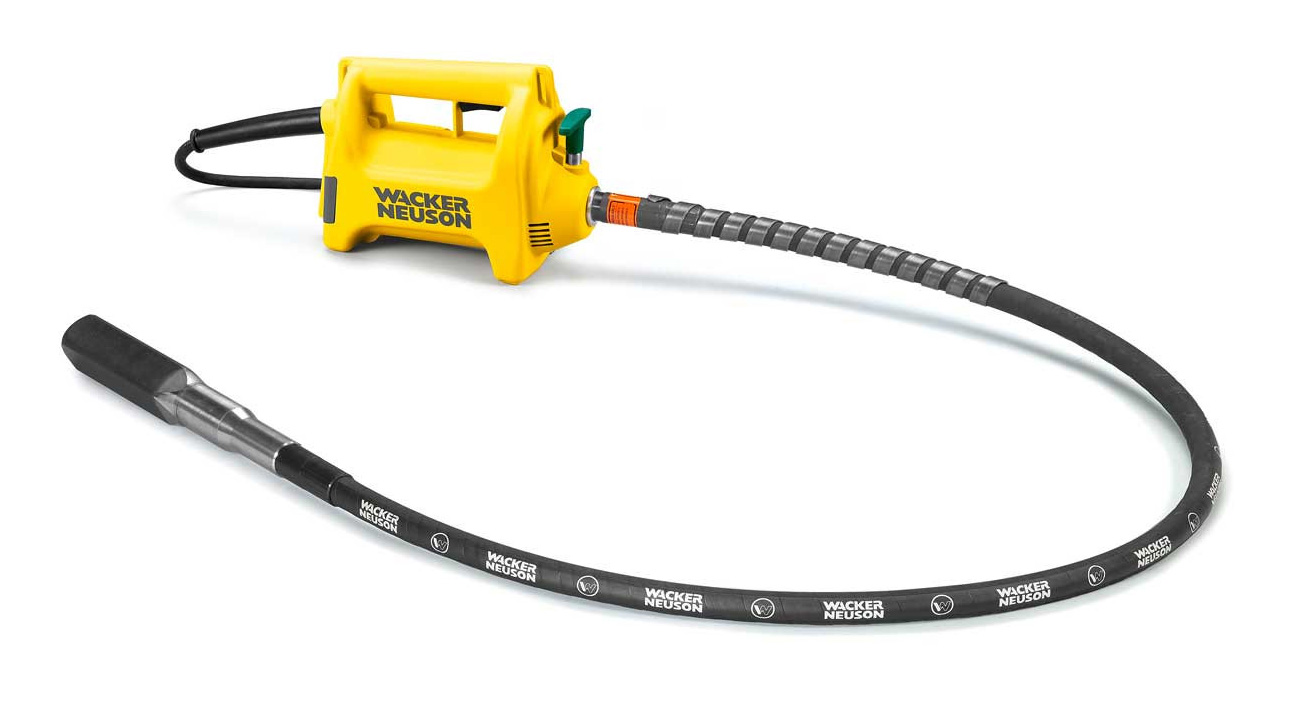

Wacker Neuson M1500 Concrete Vibrator

m1500Economical concrete vibrator for every need. The electrically driven HMS system is extremely versatile. These high frequency flex-shaft internal vibrators can be adapted to every type of application. Multiple head sizes and shaft lengths are available separately. These accessories are easily combined and rapidly exchanged to match the right application for the job. Unique hybrid heads offer optimum concrete consolidation and movement. WACKER HMS systems provide reliable performance and quality concrete.

  • Lightweight, but rugged unit preferred by operators
  • Double insulated and grounded motor improves safety
  • Dual air filters extend motor life and allow for easier maintenance

Technical Features

  • Vibrations rpm: 14,000
  • Double insulated universal motor
  • 120 Volts
  • 12.5 Amps
  • 2 Hp
  • Weight 10.9 lbs.
  • L x W x H: 12.3" x 6.1" x 9.1"

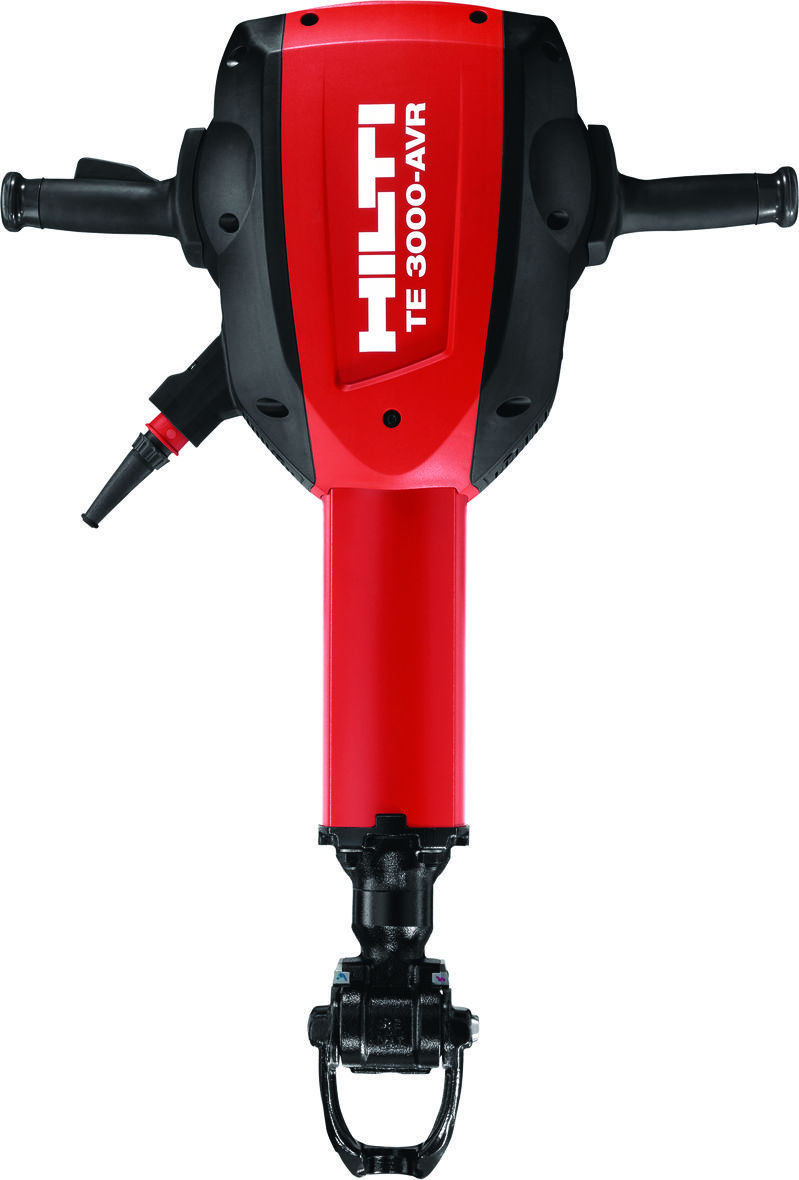

TE 3000-AVR

te-3000Exceptionally powerful concrete demolition hammer featuring low vibration and brushless motor.

  • Full hammering frequency: 860 impacts/minute
  • Single impact energy: 50 ft-lbs
  • Weight according EPTA-Procedure 01/2003: 65.9 lb.
Features:
  • Impressive hammering impact energy of 68 joules for rapid progress in big concrete demolition jobs
  • Exceptionally high breaking performance – up to 6 tons of concrete per hour, which puts the TE 3000 on a par with air/compressor tools
  • Minimal vibration
  • Versatile, easy to operate, easy to transport and ready for use in minutes
  • Needs no compressor and therefore easier to transport than air tools, highly versatile and ready for use in minutes
