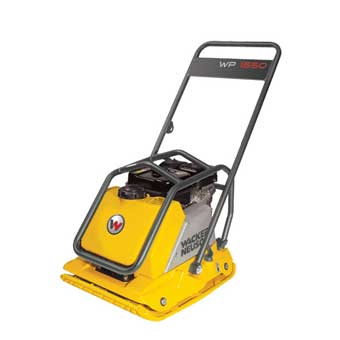

WP1550AW Plate Compactor

The WP premium plate series feature a patented computer designed base plate that has a tapered bottom and edges for high speed and excellent maneuverability. Designed for the compaction of granular, mixed materials with some cohesive content.


  • Large capacity polyethylene water tank is located within the front lift cage for protection and is semi-transparent for easy check of the water level
  • Lightweight, high strength aluminum components keep machine weight down and allow for easy handling
  • Tough, wear resistant ductile iron base plate offers durability and shock resistance
  • Integrated spray bar with angled holes to allow for complete water coverage for no asphalt pick up on the plate bottom
  • Straight, center-mounted guide handle offers superior manuverability and can be lowered within inches of teh surface to operate the plate under obstacles and form work

Plate Size: 23 X 19.5 in

Exciter Speed: 5800 vpm

Engine Displacement: 9.9 cu-in

Overall Length: 34.5

Engine Type: Honda GX160 UT1 QWX2 Gasoline, 1 Cylinder, Air Cooled, 4-Cycle

Engine Specifications: 3.6 hp at 3600 rpm

Centrifugal Force: 15 kN

Maximum Speed: 34.7 fpm

Overall Height: 38 in

Standards: EN ISO 11204

Fuel Consumption: 1.8 gal/hr

Overall Width: 19.5 in

Water Tank Capacity: 11 qt

 Fuel Tank Capacity: 3.9 gal

Special Features: Dual Element Air Cleaner, Model WP 1550AW


Achieve your goal fast and reliably

BPU 4045

Achieve your goal fast and reliably.

High compaction force combined with fast forward and reverse travel means the BPU4045 achieves great productivity. It is an all around versatile plate for all job sites that place high demands on the machine's performance potential. Its other outstanding characteristics are high operator comfort and a long service life. It is perfectly suited for the compaction of building back-fill, and of frost and sub bases when constructing roads, paths and parking lots. The 69 Hz frequency makes the BPU4045 suitable for all purposes and compacts even medium-weight interlocking paving stone reliably.

  • Intuitive guide handle design: The operator changes the direction of travel and speed simply by moving the handle forwards and backwards.
  • Infinitely variable forward and reverse operation including spot compaction for easy maneuverability. Ideal for trenches and over large areas.
  • Comprehensive comfort features: e.g. low oil shut off and maintenance-free alternator.
  • The large gasoline engine with its high reserve capacity ensures great efficiency and a long service life.
  • The BPU4045 is equipped with a recoil starter. Different extension plates provide a variety of operating widths.
Operating Weight Centrifugal Force Operating Width Engine/Motor
710 lbs. 8.992 lbf 17.7 in. Honda

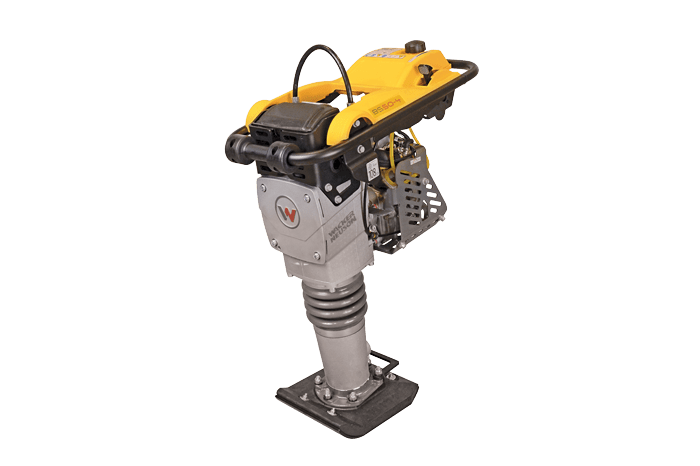

BS 50-4s Vibratory Rammer

BS50-4sThe outstanding features of Wacker Neuson's four-cycle rammers are the compact design and high performance. The long shoe stroke, high percussion rate and high stroke energy combined with fast advance travel achieve excellent results.

  • Choice of two engine options: Wacker Neuson or Honda. Designed for the compaction of cohesive, mixed and granular soils in confined areas
  • Low oil protection: Wacker Neuson: An LED indicator lights up if the rammer is started with insufficient oil levels, and the engine shuts down automatically after 10 seconds to prevent engine damage. Honda: When starting the unit, a sensor detects no oil or low oil and does not allow the engine to start.
  • A unique four-stage air filtration system provides a virtually dust-free engine for longer life and improved durability. The system includes a last chance filter that protects the engine during air filter maintenance.
  • Simple operation: The integrated fuel valve in the throttle means that there is only one lever for acceleration and shut-off.

Operating data

Operating weight  lb 139
Ramming shoe size (WxL)  in 11 x 13.3
L x W x H  in 26.5 x 13.5 x 37
Percussion rate max. blows/min 684
Stroke at the ramming shoe in 2.6
Operating speed Travel Speedft/min 24.8
Surface capacity Compactionft²/h 1,368

Engine / Motor

Engine / Motor type  WM 100
Engine / Motor manufacturer  Wacker Neuson
Engine / Motor  air-cooled single-cylinder four-cycle gasoline engine
Displacement  in³ 5.9
Operating performance Max rated power - SAE J1995 hp 3.2
at rpm  rpm 4,200
Fuel consumption US gal/h 0.31
Tank capacity (fuel)US qt 3.2


For more For More Available Models, Visit Wacker Neuson
