Telescopic booms increase productivity with the traction and drive speed needed to get around jobsites and work areas. These units are designed to easily maneuver in tight spaces on construction and industrial sites.
Overview
- 360˚continuous rotation turntable for quick positioning
- Automatic axle position adjustments for the increased terrainability and positive traction drive to maintain equal power to all drive wheels
- Rotating, self-leveling platform with hydraulic platform rotation for easy positioning
- Dual-fuel (gas or LPG) options available for indoor/outdoor applications
Available Models:
| Make | Model | Max. Working Height | Unrestricted Lift Capacity | Platform Size |
Max. Horz. |
Stowed Overall Dimensions | Minimum Stowed Height | Approx. Weight |

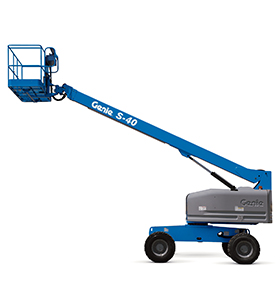

| Genie | S-40 | 46' | 500 lbs. | 36" x 96" | 31' 8" | 7' 6" x 24' 3" | 8' 2" | 12,500 lbs. |
| JLG | 400S | 46' | 500 lbs. | 30" x 96" | 34' 7" | 7' 8" x 24' 9" | 7' 10" | 13,000 lbs. |
| Snorkelift | TB-420 | 48' | 650 lbs. | 33" x 92" | 33' | 7' 11.5" x 23' 6" | 7' 10" | 12,500 lbs. |
| JLG | 460SJ | 52' | 500 lbs. | 36" x 96" | 41' | 7' 6.5" x 29' | 7' 10" | 16,000 lbs. |
| Snorkelift | TB-60 | 66' | 600 lbs. | 33" x 92" | 50' | 7' 11.5" x 30' 10" | 8' 9" | 22,500 lbs. |
| JLG | 600S | 66' | 500 lbs. | 36" x 96" | 49' 6" | 7' 11.5" x 27' 11" | 8' 4.75" | 25,000 lbs. |
| Genie | S-60 | 66' | 500 lbs. | 36" x 96" | 50' 10" | 8' 2" x 27' 11" | 8' 11" | 20,740 lbs. |
| Snorkelift | TB-66J | 72' | 500 lbs. | 30" x 92" | 56' | 7' 11.5" x 33' | 8' 9" | 26,500 lbs. |
| JLG | 66SJ | 72' | 500 lbs. | 36" x 96" | 56' 9" | 7' 11.5" x 33' 6" | 8' 4.75" | 28,500 lbs. |
| Snorkelift | TB-80 | 86' | 600 lbs. | 30" x 92" | 71' 1.5" | W. 8' 6" retracted W. 12' 6" extracted L. 38' 10" |
9' 7" | 32,000 lbs. |
| Snorkelift | TB-85J | 91' | 500 lbs. | 30" x 96" | 76' 8" | W. 8' 6" retracted W. 12' 6" extracted L. 42' 2" |
9' 8" | 31,000 lbs. |
| Genie | S-125 | 131' | 500 lbs. | 36" x 96" | 80' | W. 8' 2" retracted W. 11' extracted L. 46' 9" |
10' 1" | 44,640 lbs. |
| Snorkelift | TB-126J | 132' | 500 lbs. | 30" x 92" | 63' | W. 8' 6" retracted W. 12' 10" extracted L. 42' 9" |
10' 4" | 42,500 lbs. |
