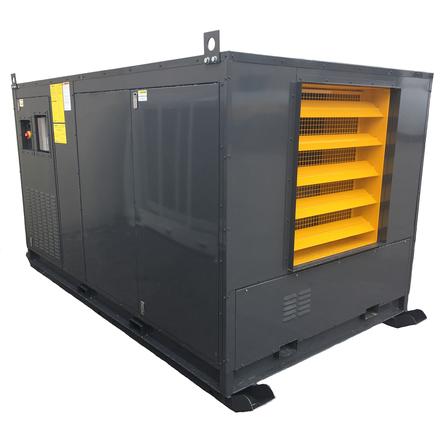

THP-4500

thp-4500Direct-Fired THP-4500

Direct-fired make-up air heaters work well in most types of construction applications, helping to control moisture and air contaminants. These heaters operate similar to a permanent air handler, providing evenly distributed, warm, dry air. Installed either inside or outside, THP-Series heaters draw 100% fresh air through the unit’s intake and discharge tempered air controlled by a remote thermostat.

  • Electronic modulating burner controls
  • Remote space thermostats
  • Centrifugal blower

THP-4500 Specifications

CFM 24,500
POWER SUPPLY 460/3/60/30*
DIMENSIONS (IN) 125x68x66
WEIGHT (LB) 3,192
BASE Skid
BTU/HR MAXIMUM 202,500 – 4,500,000
NATURAL GAS 2″ NPT
PROPANE 1″ NPT



View Line Drawing Here
