THP-400

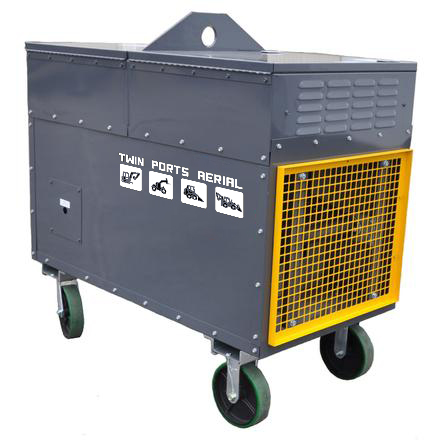

Direct-Fired THP-400

Direct-fired make-up air heaters work well in most types of construction applications, helping to control moisture and air contaminants. These heaters operate similar to a permanent air handler, providing evenly distributed, warm, dry air. Installed either inside or outside, THP-Series heaters draw 100% fresh air through the unit’s intake and discharge tempered air controlled by a remote thermostat.

  • Electronic modulating burner controls
  • Remote space thermostats
  • Centrifugal blower
  • Available on wheels for portability

THP-400 Specifications

CFM 2,400
POWER SUPPLY 115/1/60/20
DIMENSIONS (IN) 50x26x48
WEIGHT (LB) 450
BASE Casters
BTU/HR MAXIMUM 80,000 – 400,000
NATURAL GAS 1″ NPT
PROPANE 0.5″ NPT



View Line Drawing Here
