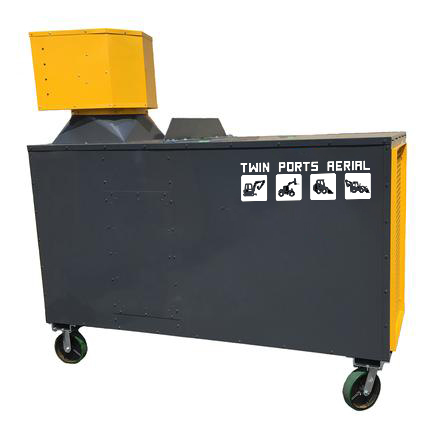

THP-1000

thp-1000Direct-Fired THP-1000

Direct-fired make-up air heaters work well in most types of construction applications, helping to control moisture and air contaminants. These heaters operate similar to a permanent air handler, providing evenly distributed, warm, dry air. Installed either inside or outside, THP-Series heaters draw 100% fresh air through the unit’s intake and discharge tempered air controlled by a remote thermostat.

  • Electronic modulating burner controls
  • Remote space thermostats
  • Centrifugal blower
  • Available on wheels for portability

THP-1000 Specifications

CFM 6,000
POWER SUPPLY 230/1/60/25*
DIMENSIONS (IN) 76x35x69
WEIGHT (LB) 939
BASE Casters
BTU/HR MAXIMUM 48,600 – 1,000,000
NATURAL GAS 1″ NPT
PROPANE 1″ NPT



View Line Drawing Here
