THP-3000

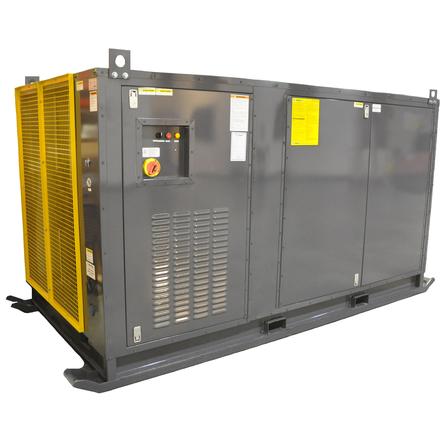

thp-3000Direct-Fired THP-3000

Direct-fired make-up air heaters work well in most types of construction applications, helping to control moisture and air contaminants. These heaters operate similar to a permanent air handler, providing evenly distributed, warm, dry air. Installed either inside or outside, THP-Series heaters draw 100% fresh air through the unit’s intake and discharge tempered air controlled by a remote thermostat.

  • Electronic modulating burner controls
  • Remote space thermostats
  • Centrifugal blower

THP-3000 Specifications

CFM 16,500
WEIGHT (LB) 2,633
POWER SUPPLY 460/3/60/15*
DIMENSIONS (IN) 123x58x64
BASE Skid
BTU/HR MAXIMUM 133,650 – 3,000,000
NATURAL GAS 1.5″ NPT
PROPANE 1″ NPT



View Line Drawing Here
